Cranio Pro-IO Comms & Compute Module PCB

Cranio Pro-IO Comms & Compute Module PCB

This prototype circuit board is part of the Cranio Pro-IO rugged data logging and control system.

Service	PCB Assembly
Complexity	⭐️⭐️
Quantity	20 prototypes
Points of interest	0.8mm BGA LGA wireless modules 0402 passive components 0.4mm QFN IC's Impedance controlled antennae traces
Processes	T3 standard lead-free solder paste Fine pitch stencil Pick-and-place machine Vaporphase soldering oven

5 x Cranio Pro-IO Comms & Compute Module PCBs

Cranio Pro-IO Comms & Compute Module PCB, being assembled by our Autotronik BA385P2-V SMT Pick & Pla

Cranio Pro-IO Comms & Compute Module PCB, Wireless Receiver Module LoRaTM RF96

Cranio Pro-IO Comms & Compute Module PCB, inside our ASSCON VP510 Vapor Phase Soldering System

Cranio Pro-IO Comms & Compute Module PCB, with a u-blox MAX-M8W-0-10 GNSS receiver module

Cranio Pro-IO Comms & Compute Module PCB, prior to assembly.

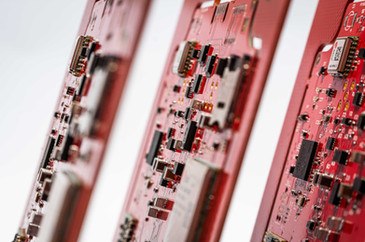

Cranio Pro-IO Comms & Compute Module PCBs

Cranio Pro-IO Comms & Compute Module PCB, Wireless Receiver Module LoRaTM RF96

Cranio Pro-IO Comms & Compute Module PCB, being assembled by our Autotronik BA385P2-V SMT Pick & Pla

Cranio Pro-IO Comms & Compute Module PCB, with a Dynastream Innovations D52 ANT SoC Module

5 x Cranio Pro-IO Comms & Compute Module PCBs
